SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	2.76 oz.
Interior Drawers	Yes
Drawers Qty	3
Temperature Range	-20�C to -30�C

AVAILABLE UPGRADES

Door

STO-Step-To-Open Door Pedal

Step-to-open door pedal allows hands-free access to open the door 90 degrees

Handle

CP Full-Length Copper Pipe Handle

Factory-installed full-length handle made from pure copper for antimicrobial protection

TBC Copper Towel Bar Handle

Factory-installed handle made from pure copper for antimicrobial protection

Lock

KEYPAD

Battery-powered keypad door lock installed for keyless security

AC Keypad

Keypad door lock powered by appliance power cord for keyless security

Exterior

PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Extra key Extra keys available for purchase
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	LHD - Left hand door swing Door reversal to left hand swing
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to .
Note: Nickel is a component of stainless steel.

FEATURES

Built-in capable
Front-breathing system allows the unit to be used built-in

Commercially approved
Meets NSF-7 commercial standards

ADA compliant
32" height allows installation under lower ADA compliant counters

-30� C (-22� F) capable
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

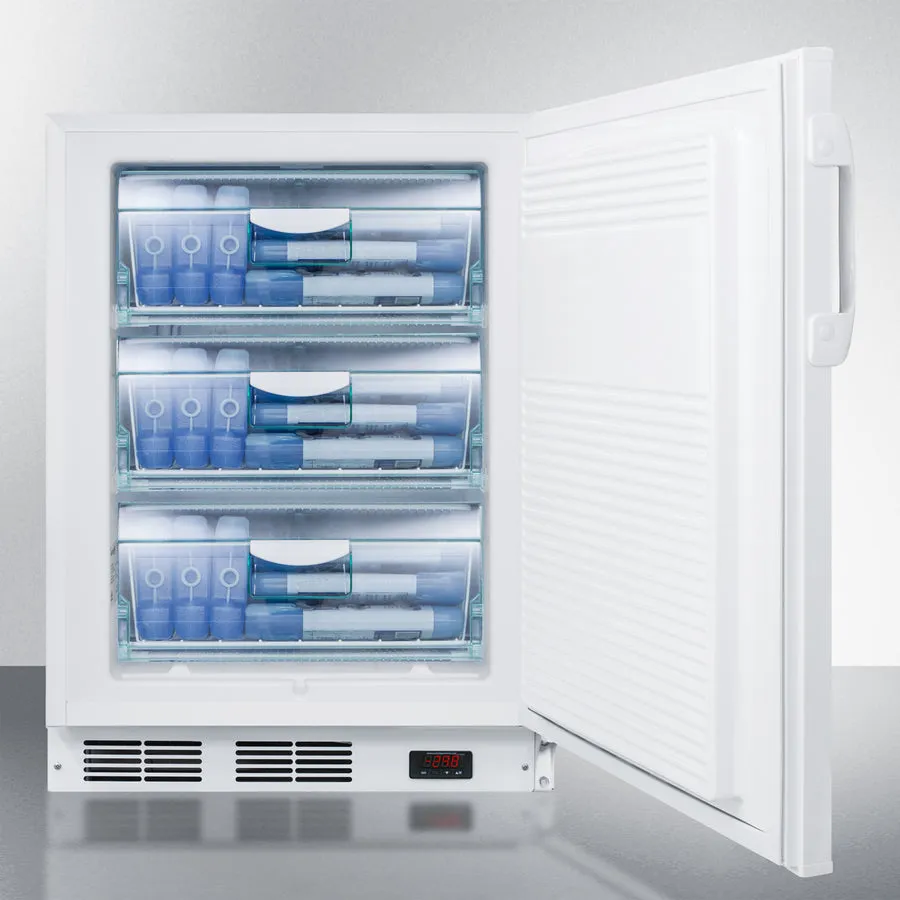

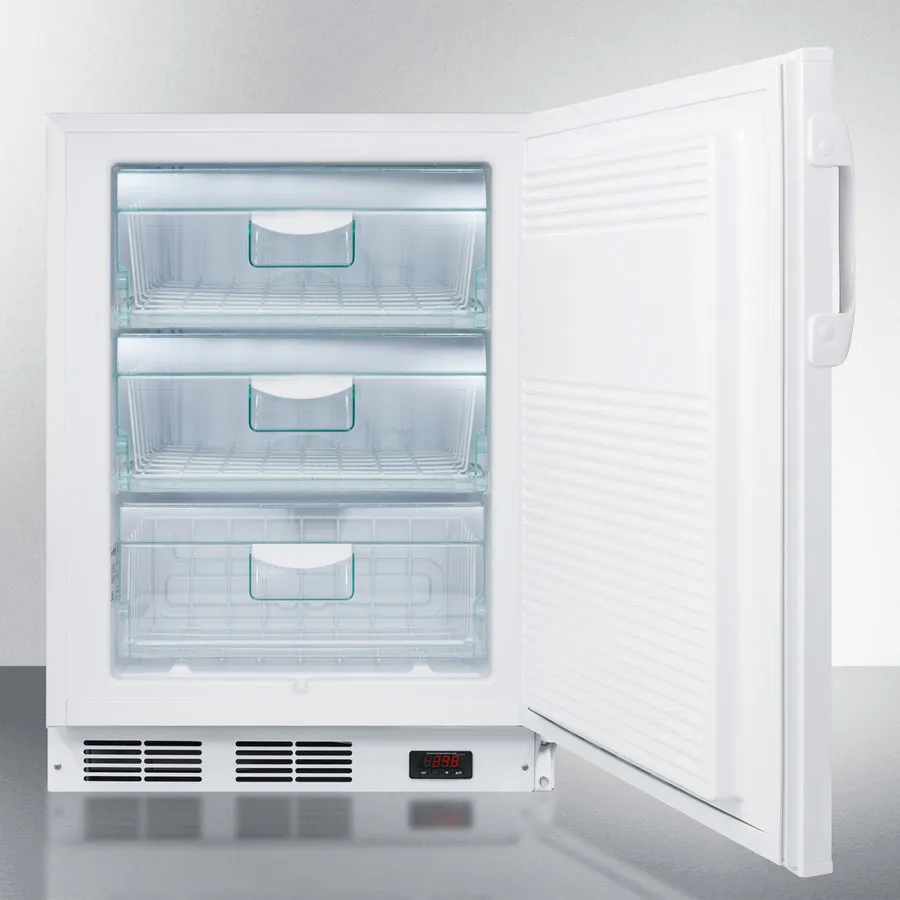

Three slide-out drawers
Conveniently organize your items while keeping the temperature stable when the door is opened

Factory installed lock
Keyed lock offers convenient security

Digital thermostat
Electronic controls for precise temperature management

Alarm with temperature display
Provides external temperature readout and includes programmable alarm to warn of temperature variations

Manual defrost
No temperature fluctuations with an energy efficient manual defrost system

100% CFC free
Environmentally friendly design using R404a and without ozone-damaging chemicals

DESCRIPTION

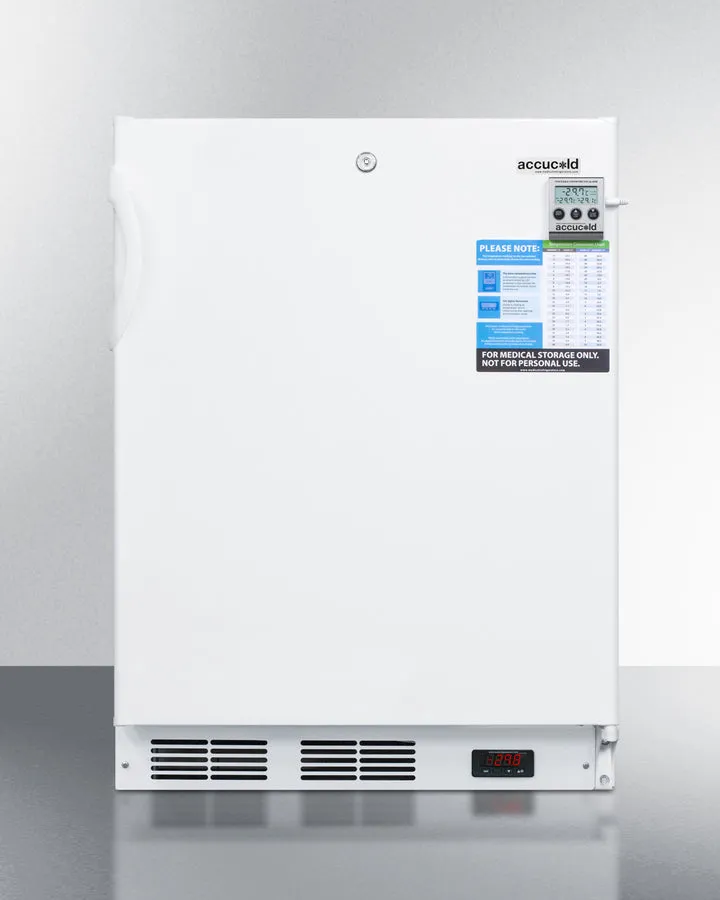

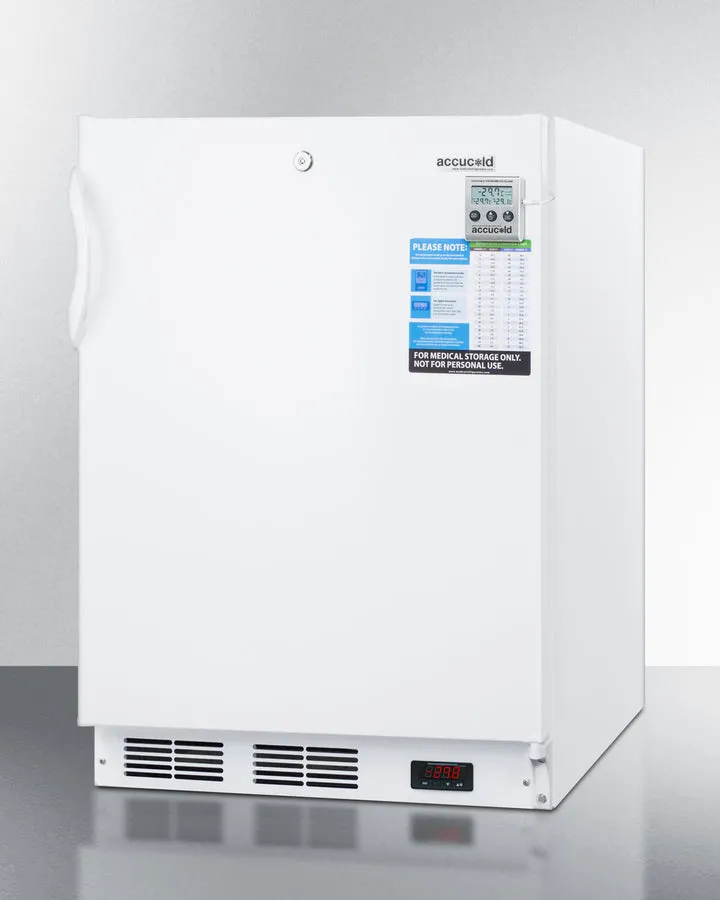

Accucold medical all-freezers offer low temperature storage in a perfectly sized footprint.The VT65ADA is an upright all-freezer sized with a 24" footprint. At 32" high, it is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. A factory installed keyed lock offers added security. The digital thermostat is located in the kickplate so that users can manage the temperature without opening the door. A NIST calibrated high/low temperature alarm is also included.Inside, the VT65ADA utilizes static manual defrost operation to maintain stable temperature. This unit can reach temperatures as low as -30�C. Three slide-out basket drawers offer convenient storage while minimizing temperature fluctuations when the door is open.Note: This unit is ETL-S approved to NSF-7 standards under the model number "VT65MLBIMEDDT7ADA."
